#SpringBoot #Swagger

spring fox(x), spring doc(o)

[ build.gradle 추가 ]

implementation 'org.springdoc:springdoc-openapi-ui:1.6.6'

[ application.properties 추가 ]

springdoc.packages-to-scan=org.zerock.corp_1.controller
springdoc.paths-to-exclude=/notes/*
springdoc.default-consumes-media-type= media-type: application/json;charset=UTF-8
springdoc.default-produces-media-type= application/json;charset=UTF-8
springdoc.swagger-ui.path=/
springdoc.swagger-ui.disable-swagger-default-url=true
springdoc.swagger-ui.display-request-duration=true
springdoc.swagger-ui.operations-sorter=alpha

[ SwaggerConfig.java 생성 ]

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import io.swagger.v3.oas.models.Components;
import io.swagger.v3.oas.models.OpenAPI;
import io.swagger.v3.oas.models.info.Info;

@Configuration
public class SwaggerConfig {

    @Bean
    public OpenAPI openAPI() {
        return new OpenAPI()
                .components(new Components())
                .info(apiInfo());
    }

    private Info apiInfo() {
        return new Info()
                .title("Springdoc 테스트")
                .description("Springdoc을 사용한 Swagger UI 테스트")
                .version("1.0.0");
    }
}





application.properties에서 설정한
springdoc.packages-to-scan=org.zerock.corp_1.controller
패키지 경로 하위의 controller에 설정한 api를 swagger문서로 확인가능

[ 어쩌고저쩌고Controller.java ]

@RestController
@Log4j2
@RequestMapping("/api/corp/")
@RequiredArgsConstructor
public class CorpController {

	@Operation(summary = "cm_corp > list", description = "기업 리스트")
    @ApiResponses({
            @ApiResponse(responseCode = "200", description = "OK", content = @Content(schema = @Schema(implementation = ResponseEntity.class))),
            @ApiResponse(responseCode = "400", description = "BAD REQUEST"),
            @ApiResponse(responseCode = "404", description = "NOT FOUND"),
            @ApiResponse(responseCode = "500", description = "INTERNAL SERVER ERROR")
    })
    @Parameters({
            @Parameter(name = "cmpn_id", description = "회사 아이디", example = "CP0001"),
            @Parameter(name = "brnc_id", description = "지사 아이디", example = "BR0001"),
            @Parameter(name = "dprt_id", description = "부서 아이디", example = "DP0001"),
            @Parameter(name = "mbr_id", description = "회원 아이디", example = "ㅁㅁㅁㅁ"),
            @Parameter(name = "currentPage", description = "현재 페이지", example = "30"),
            @Parameter(name = "recordSize", description = "페이지 크기", example = "10"),
            @Parameter(name = "sort", description = "정렬", example = "0")
    })
    // 기업 리스트
	@PostMapping("list")
	public ResponseEntity<Object> getCorpList(@RequestBody HashMap<String, Object> paramMap){

		log.info("-----------POST /api/corp/list-------------------------------");
		Object obj = corpService.getCorpList(paramMap);
		return new ResponseEntity(DefaultRes.res(StatusCode.OK, ResponseMessage.SELECT_SUCCESS, obj), HttpStatus.OK);
	}
}

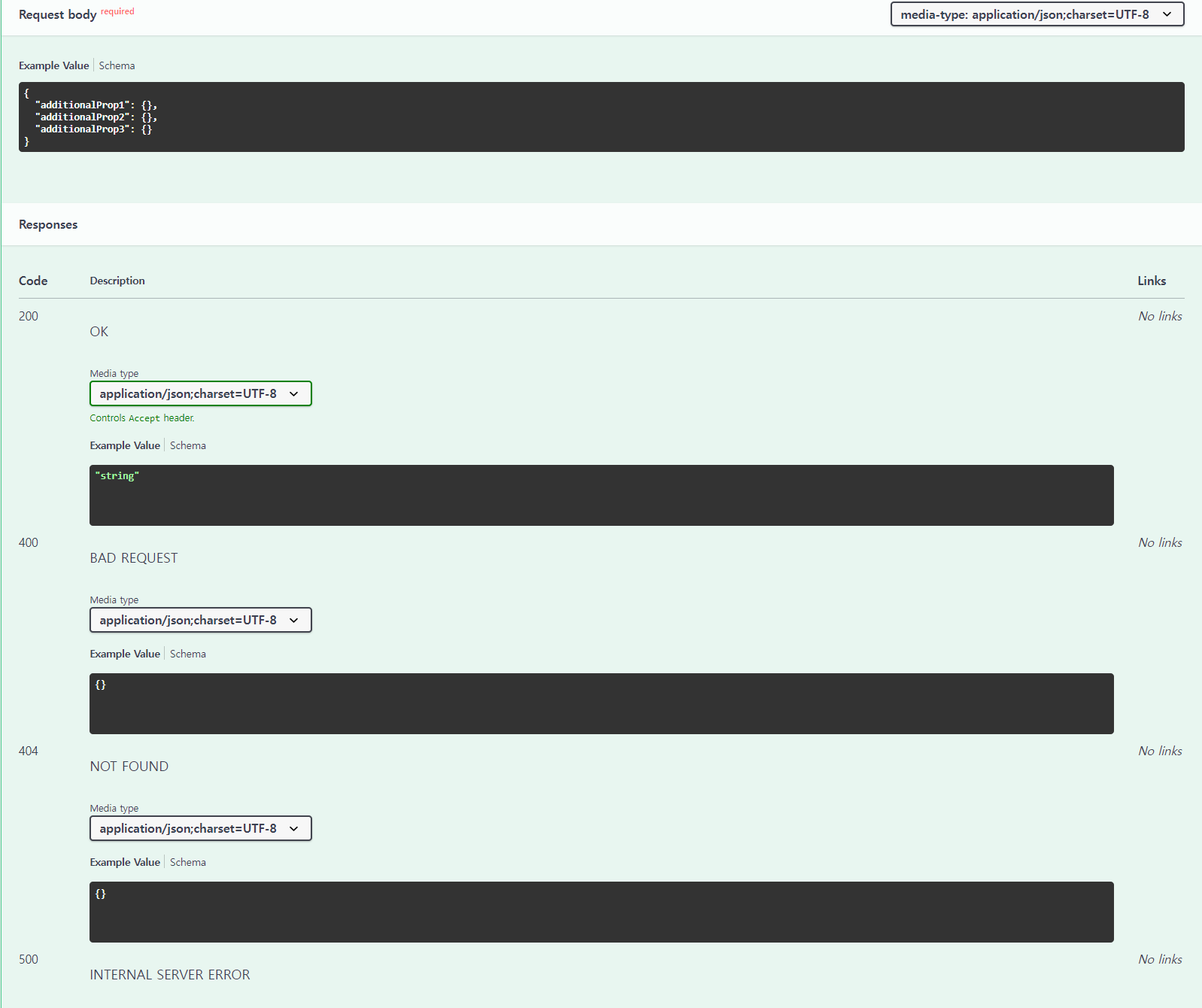

여기까지 설정 후
http://localhost:8081/swagger-ui/index.html#/
위 URL로 들어가면 확인가능
